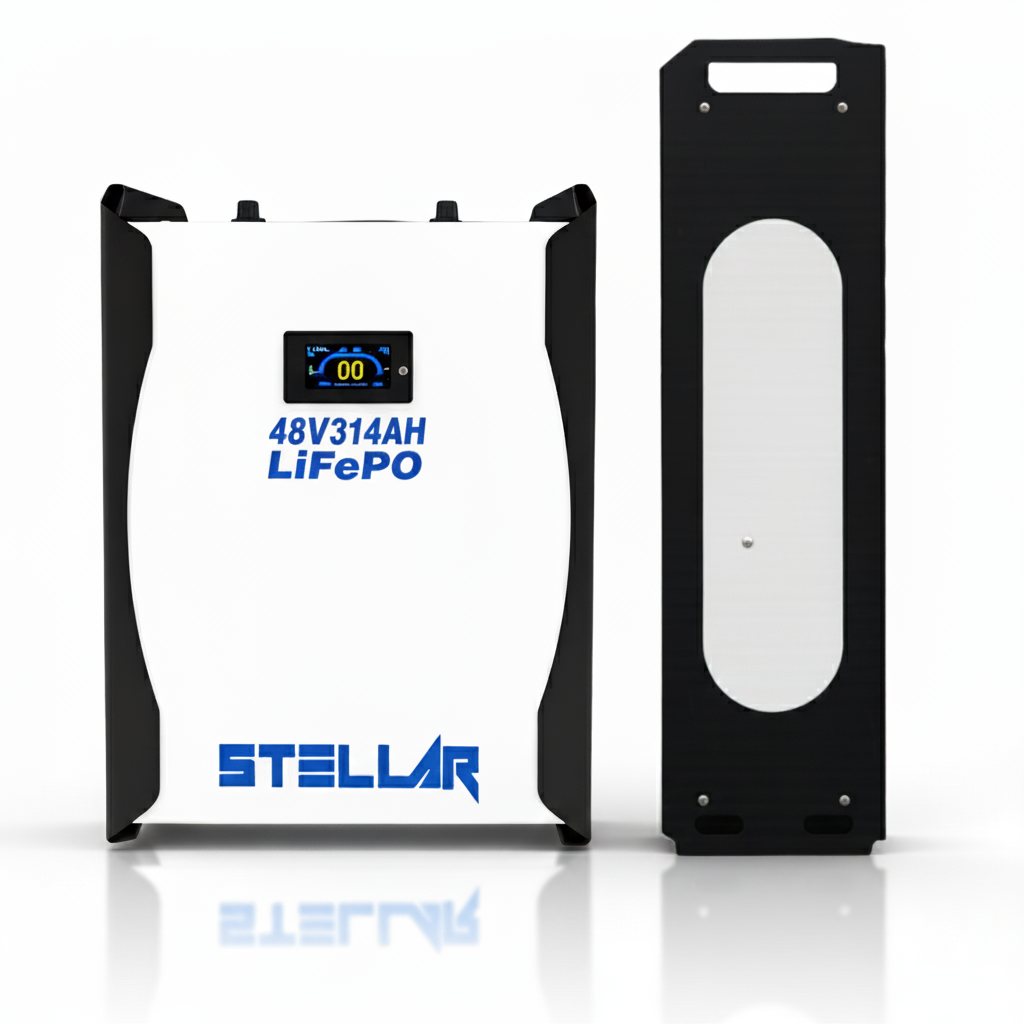

🔋 SBL 1616 LiFePO₄ Battery
Performance Parameters
Cell Type: LiFePOâ‚„
Cell Specification: 314
Number of Cells: 16
Nominal Voltage: 51.2V
Operating Voltage: 44.8V–57.6V
Nominal Energy: 16.07kWh
Usable Energy: 14.46kWh
Charge/Discharge Current (Recommended): 157A
Charge/Discharge Current (Max): 200A

Communication
Display: SOC, Faults, and Operating Status
Communication Protocol: RS485/CAN

General Parameters
Weight: 118.5kg
Dimensions (W×H×D ±1mm): 420×895×250mm
Parallel Connection: Up to 15 units (≈108.9kWh total)
Life Cycle: ≥8000 cycles (25°C, 90%DOD, 1C, 70%EOL)
Operating Temperature: Charge: 0°C–50°C, Discharge: -20°C–50°C
Storage Temperature: -20°C–45°C (≤1 month), -20°C–35°C (≤6 months)
Relative Humidity: 5%–95% (non-condensing)
Cooling Method: Natural Cooling
Installation: Floor-standing
Installation Environment: Indoor
Ingress Protection Rating: IP21
Maximum Operating Altitude: ≤2000m
Protection Features: Overvoltage, Overcurrent, Short Circuit, and Overtemperature Protection
Certification: CE, UN38.3

View full details

Testimonials

  • ★★★★★

    Power That Never Lets You Down


    We installed the Stellars SBL-516 battery system in our workshop, and it has been outstanding. The performance is rock solid — even after heavy daily cycling, the battery maintains over 90% capacity. The RS485/CAN monitoring gives real-time feedback, and the natural cooling design means zero noise. We rely on it daily with confidence.

    Ahmed R., Lahore

  • ★★★★★

    Reliable Energy for My Solar Home


    As a solar home user, I was looking for a battery that’s safe and long lasting. The SBL series from Stellar delivers exactly that. We have run it in high temperature conditions (40-45 °C) and it continues to work reliably. The 8000+ cycle life promise gives me peace of mind that I won’t need replacements any time soon.

    Sana A., Islamabad

  • ★★★★★

    Industrial-Level Power with Complete Safety


    I upgraded our system to a bank of 3 units of SBL-1616 in parallel to power our small factory during outages. The combined capacity is huge, and the system handled high loads (inrush motors, welders) without any dropouts. The protection features (overcurrent, overvoltage, etc.) worked flawlessly. Great product and support.

    Bilal K., Faisalabad
